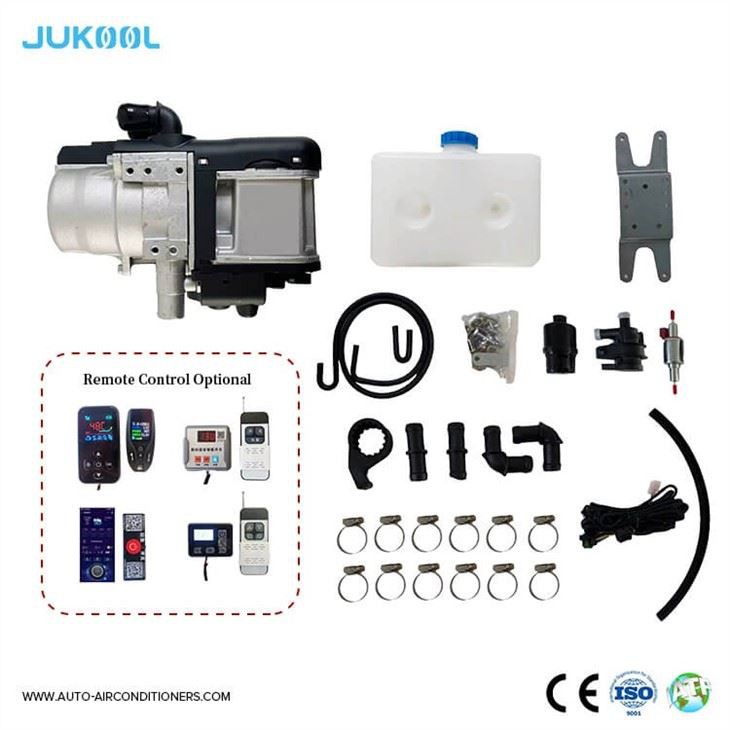

Diesel Hot Water Systems For Caravans

 Product Instruction

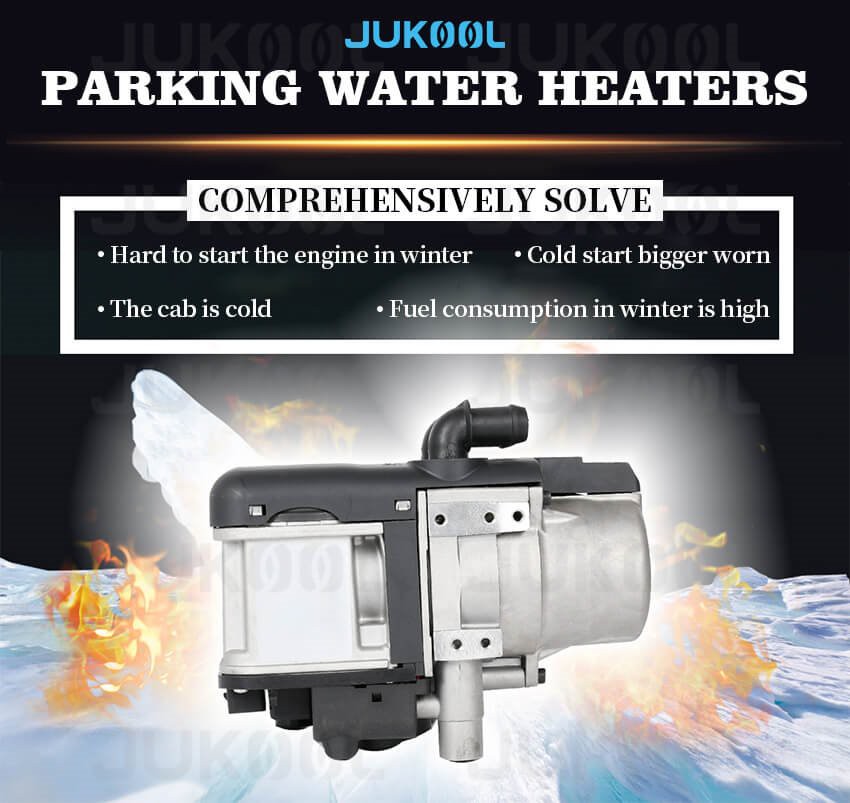

In the cold winter, if you can quickly preheat the engine before getting in the car, drive away the severe cold, automatically defrost, and improve the driving environment. From then on, you do not need to use a warm garage; warm -up engines, greatly reduce the engine wearing caused by cold start.

A large part of the engine wear is caused by cold start. Studies have shown that the wear of each cold start to the engine is equivalent to 200 kilometers driving wearing normally. Therefore, installing a diesel hot water systems for caravans can fully protect the engine and extend the service life of the engine; save fuel.

Compared with the cold start of the engine and warm up the cabin,  uses a parking heater to preheat engine and cabin , the fuel consumption is lower.

Main Features

1. Dual purpose: preheating the driver cabin and preheating the engine to protecting the engine

2. Ceramic ignition plug, start faster and more environmentally friendly

3. All die-cast aluminum shell design, high thermal efficiency, up to 90 percent

4. Lower fuel consumption and full exhaust gas can reach international standards

5. Low noise, low power consumption

6. Longer service life (using brushless motor, the service life can reach 10 years)

7. Full electronic control of function process

8. Real-time function monitoring, safety and diagnostic system

9. Maintenance-free, easy maintenance

Product Specifications

 Applications

Diesel hot water systems for caravans can be used for truck, construction machine, indoor, caravan, electric tricycle and electric car and other kind vehicles.

Precautions

Precautions for installation of cold circulation system

1. Connect the heating with the car circulating water routine , the heater and the pump are below the lowest fluid of the engine water circulation

2. The minimum water injection volume is 3.5L, system pressure reducing valve pressure is minimum 0.4Bar, maximum 2.0Bar

3. When the system water volume under lowest situation, note that the temperature difference of heater water intake and outlet has to lower than 10K

Precautions for the installation of the heater

1. The heater is series connected to the engine water cycle

2. Install the heater water intake and outlet vertically, the length of the air intake pipe shorter than 1 meter.the import and export of the smoke exhaust pipes shorter than 2meters, all pipe has to be hidden and position far away from those components cannot stand the heat. the combustion wind intake pipe and the smoke drainage pipes must not towards the direction of the vehicle.

Control Method

Four startings of diesel hot water systems for caravans for you to choose from, which are :

voice remote control

APP control

Switch control

Remote controller control.

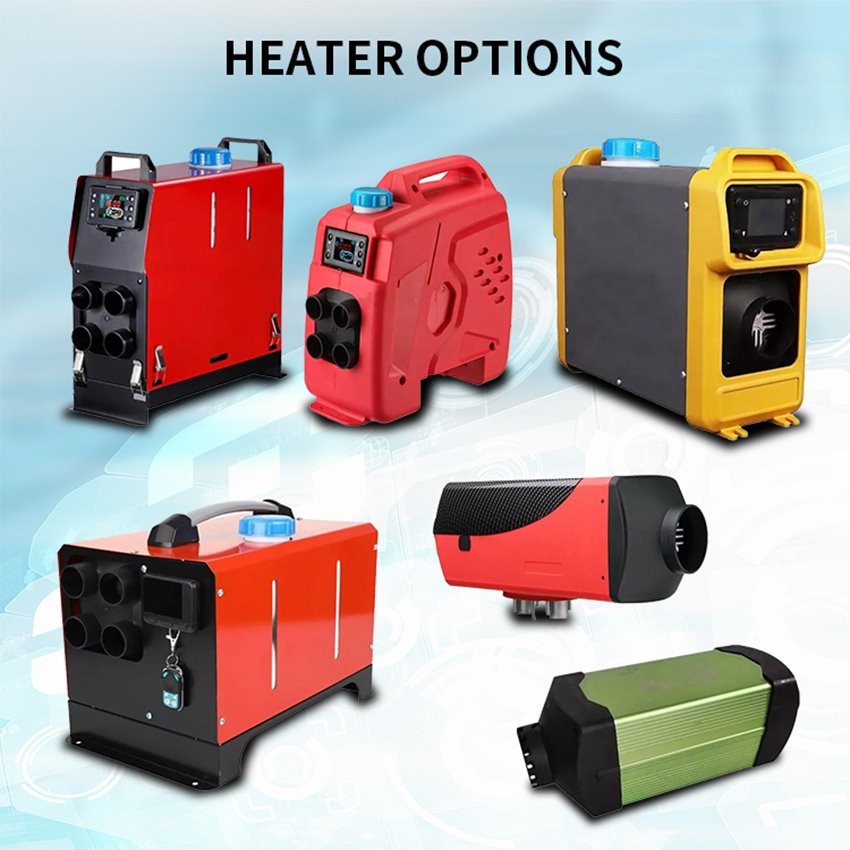

JUKOOL Diesel Heater Options

 We have 2KW, 5KW,8KW heating capacity options. The style can be vertical integrated , horizontal integrated, split in plastic cover, split in aluminum cover, smart dimension type as options as showing in below.
